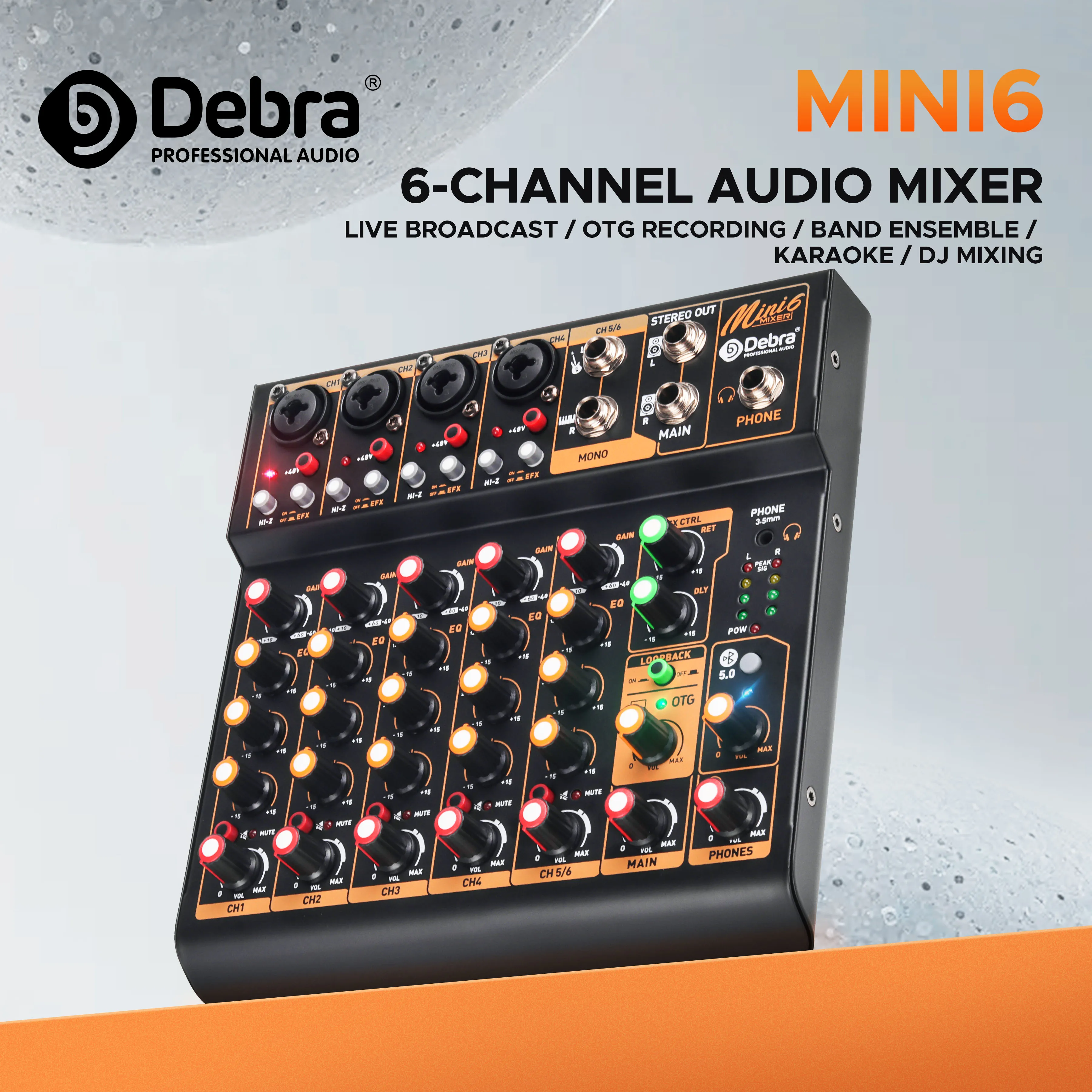

Product introduction:

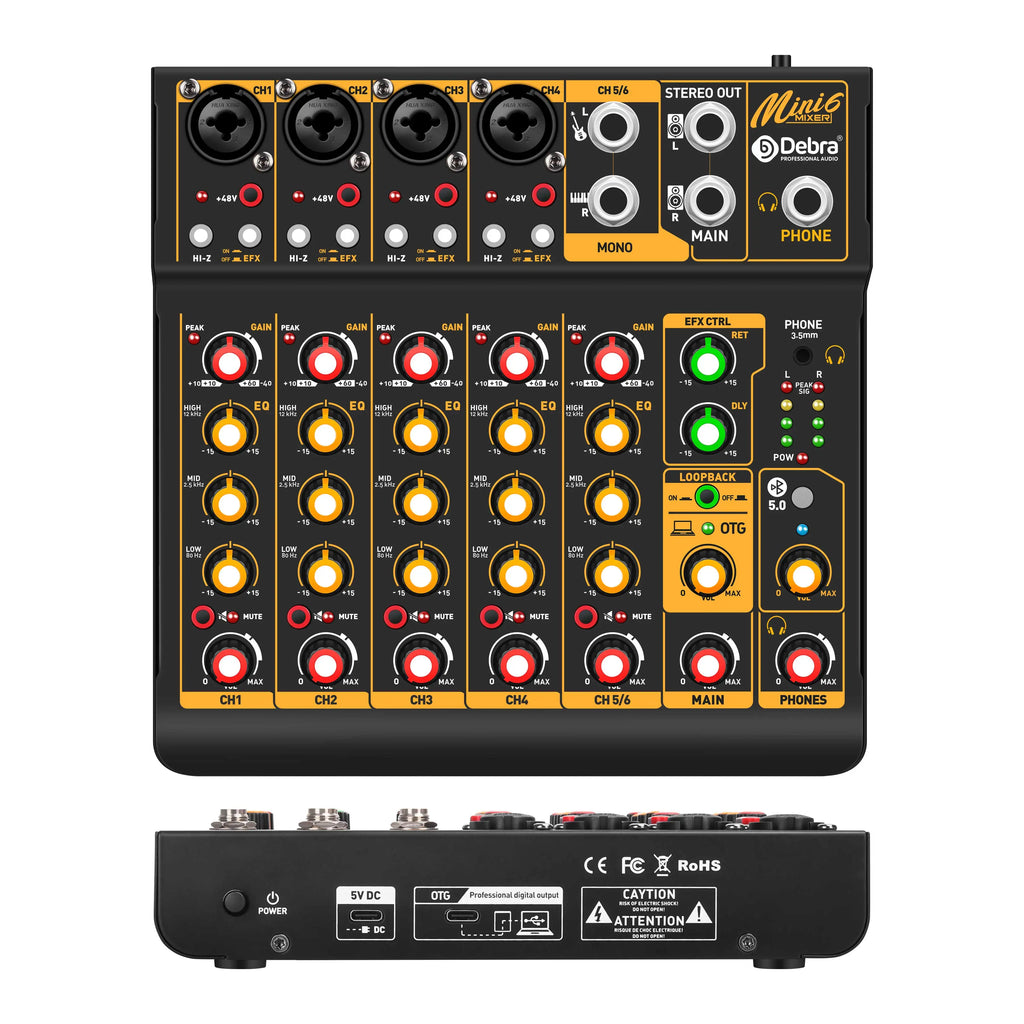

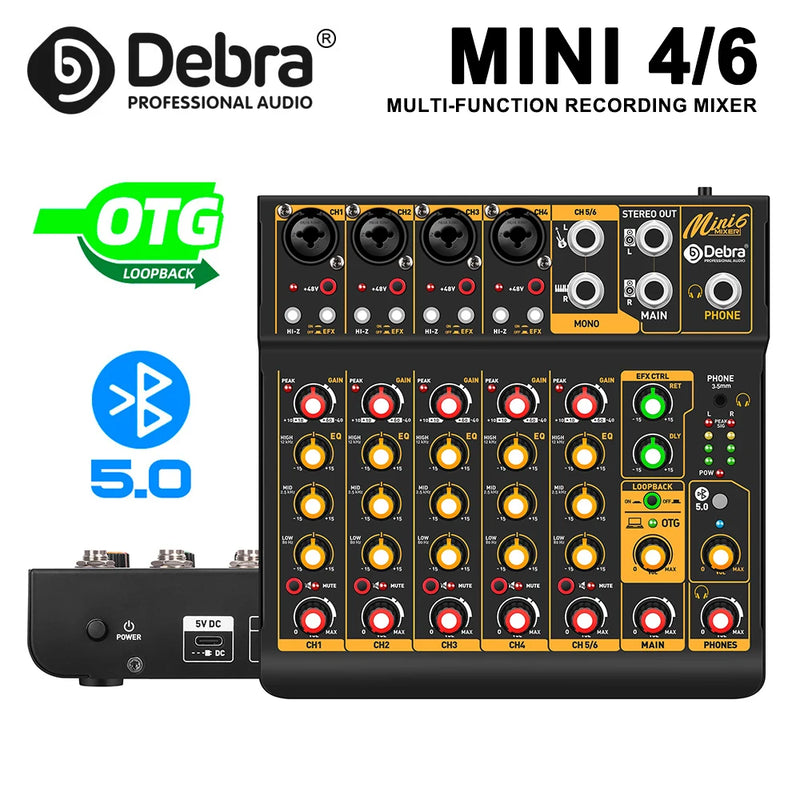

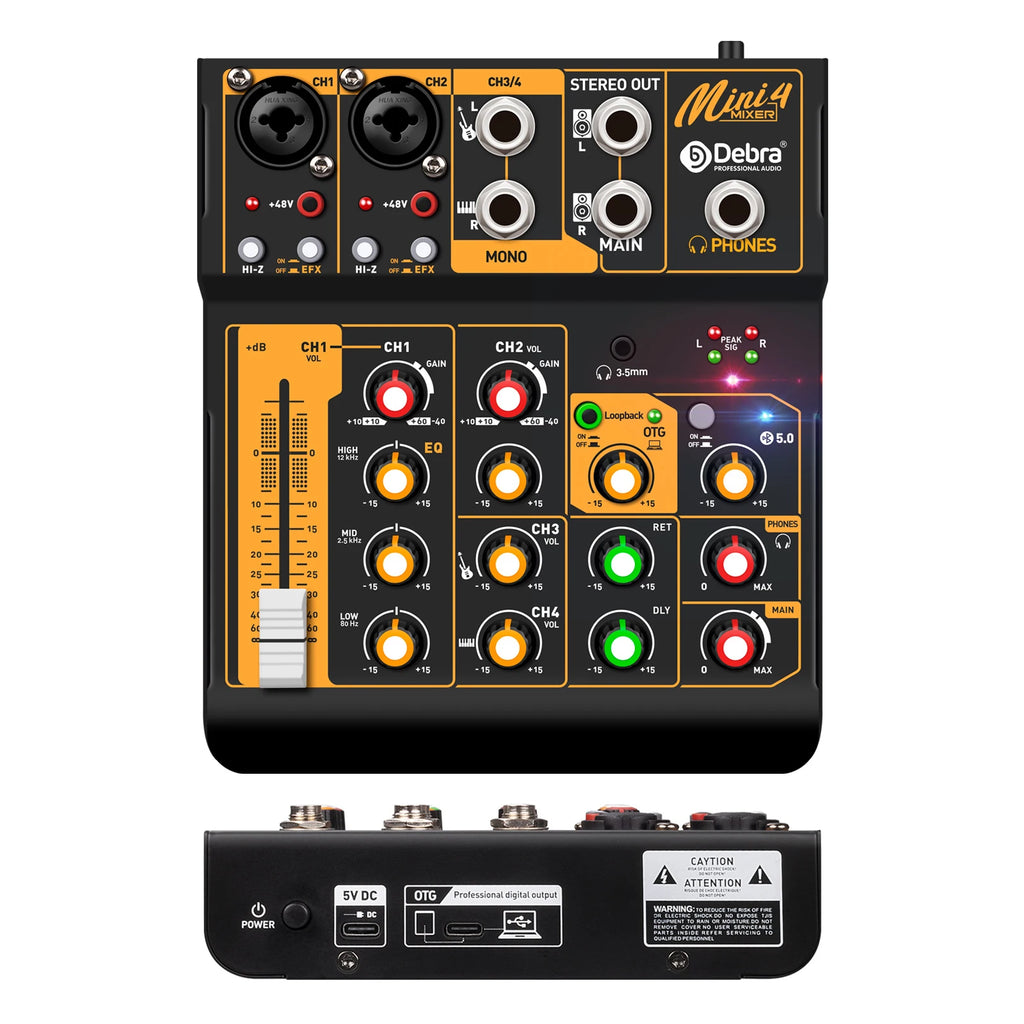

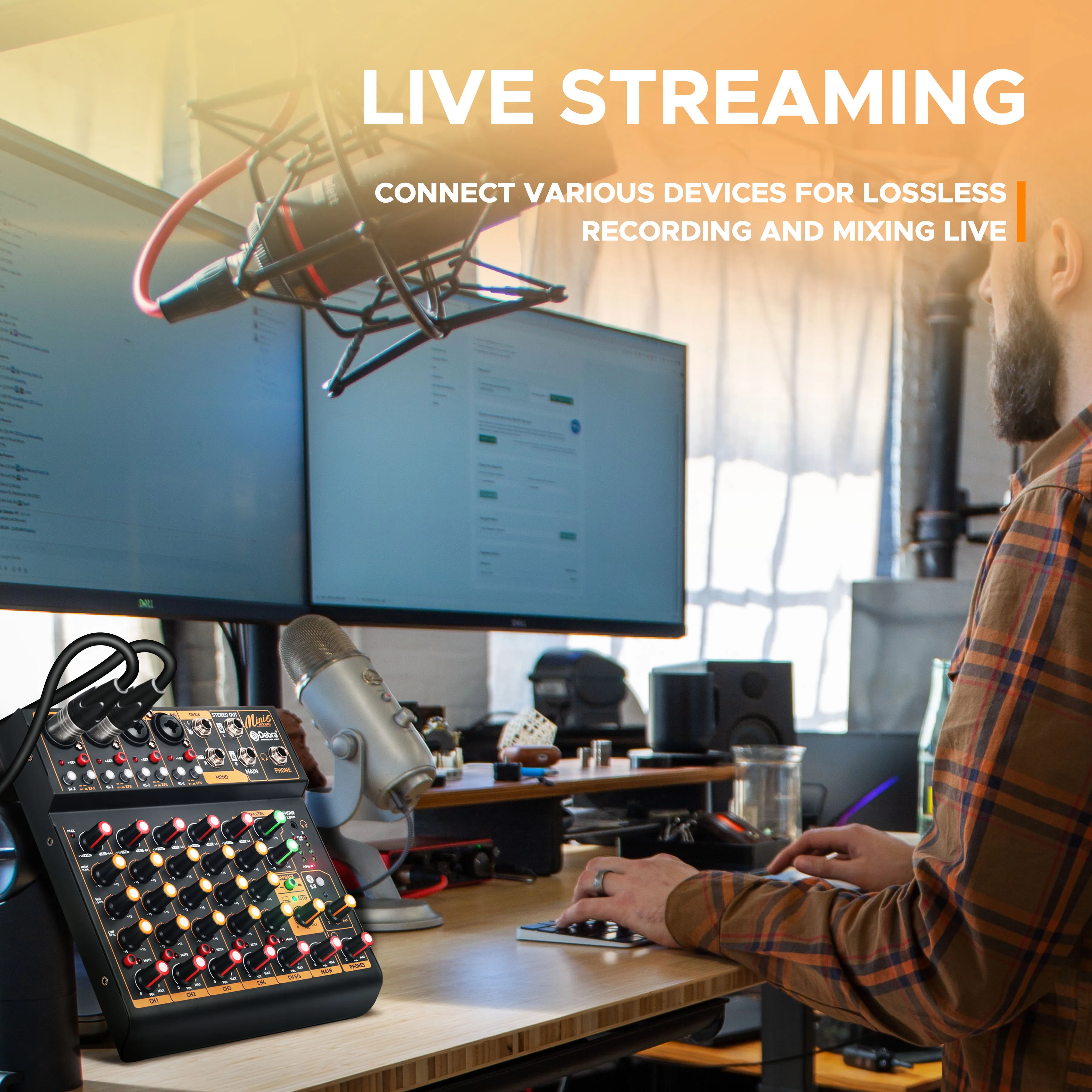

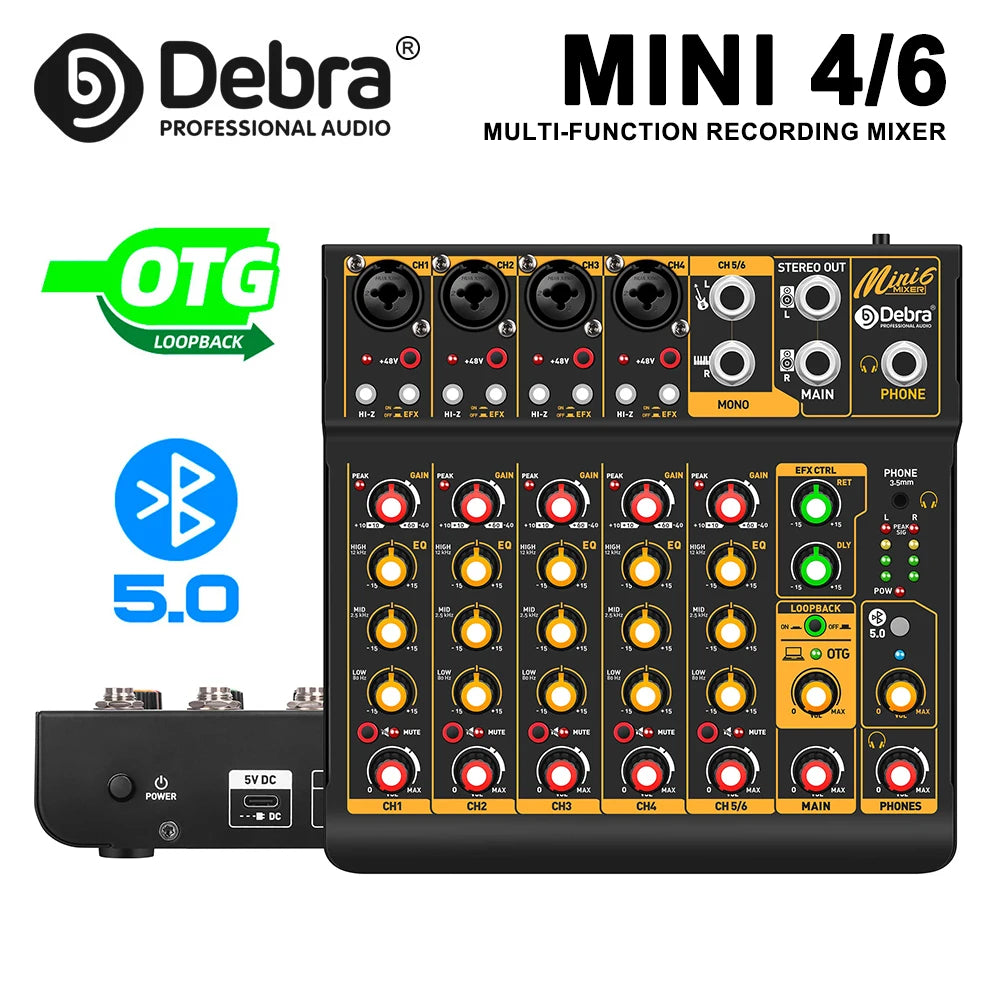

Mini6 is an ultra-mini portable mixer with a professional sound card output OTG interface, standard 48V power supply and Bluetooth 5.0, excellent microphone amplifier and reverberation effect. The 5V-powered Mini4 lets you record/mix with ease, indoors or out. Use it to help you quickly build a mobile mixing workbench. Mini6 is a good companion personal studio for personal live broadcasts and band recording and mixing, allowing users to easily and simply implement sound processing.

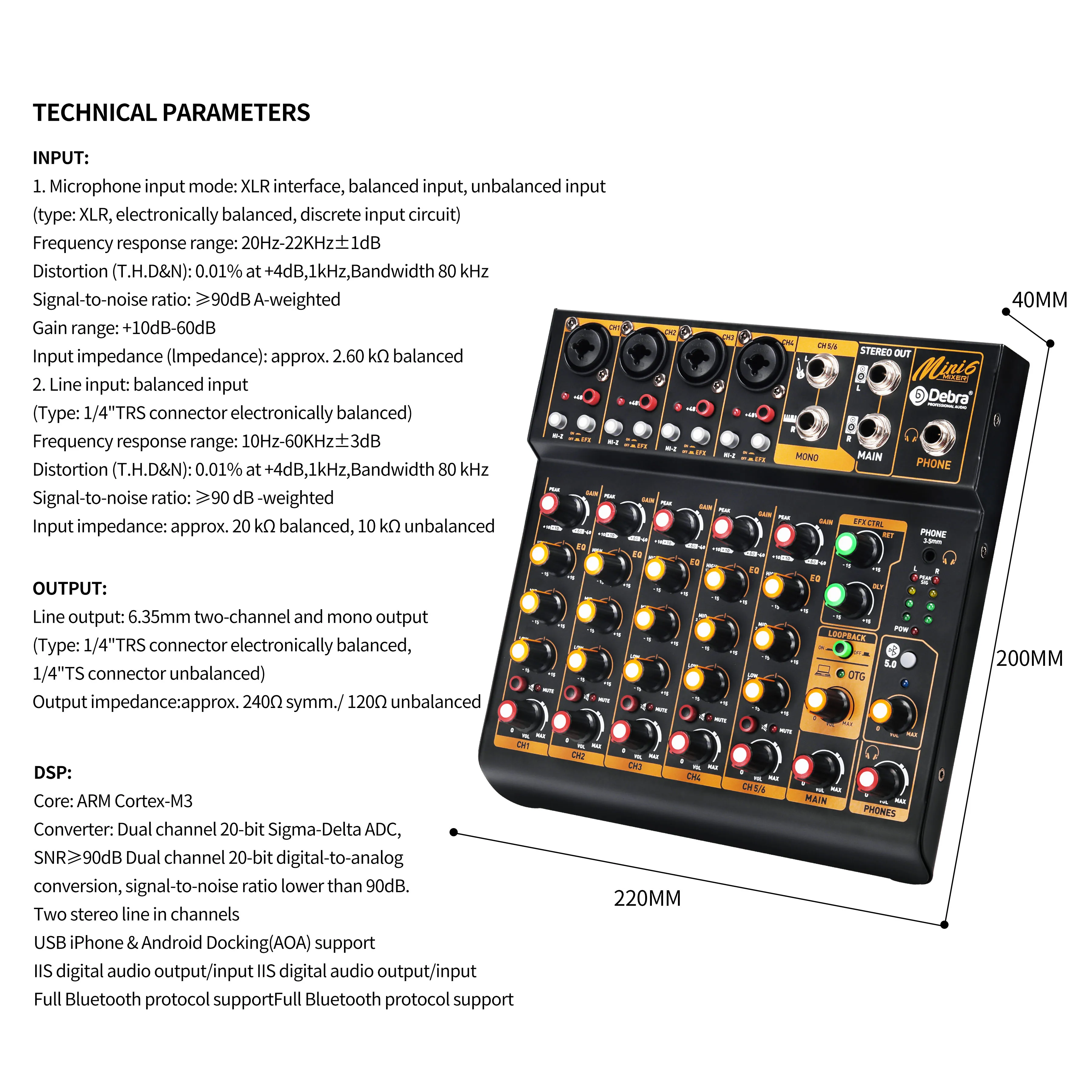

Technical parameters:

Enter:

1. Microphone input mode: XLR interface, balanced input, unbalanced input
(Type: XLR, electronically balanced, discrete input circuit)
Frequency response range: 20Hz-22KHz±1dB
Distortion (T.H.D&N): 0.01% at +4dB, 1kHz, 80 kHz bandwidth
Signal-to-noise ratio: ≥90dB A-weighted
Gain range: +10dB-60dB
Input impedance (Impedance): approx. 2.60 kΩ balanced
2. Line input: balanced input
(Type: 1/4" TRS connector electronically balanced)
Frequency response range: 10Hz-60KHz±3dB
Distortion (T.H.D&N): 0.01% at +4dB, 1kHz, 80 kHz bandwidth
Signal-to-noise ratio: ≥90 dB weighted
Input impedance (Impedance): approx. 20 kΩ balanced, 10 kΩ unbalanced

Digital signal processor:

Core: ARM Cortex-M3
Converter: dual-channel 20-bit Sigma-Delta ADC, SNR≥90dB dual-channel 20-bit analog-to-analog conversion.
The signal-to-noise ratio is lower than 90dB.
Two stereo lines in the channel
USB iPhone and Android docking station (AOA) support
IIS digital audio output/input IIS digital audio output/input
Full Bluetooth protocol supportFull Bluetooth protocol support

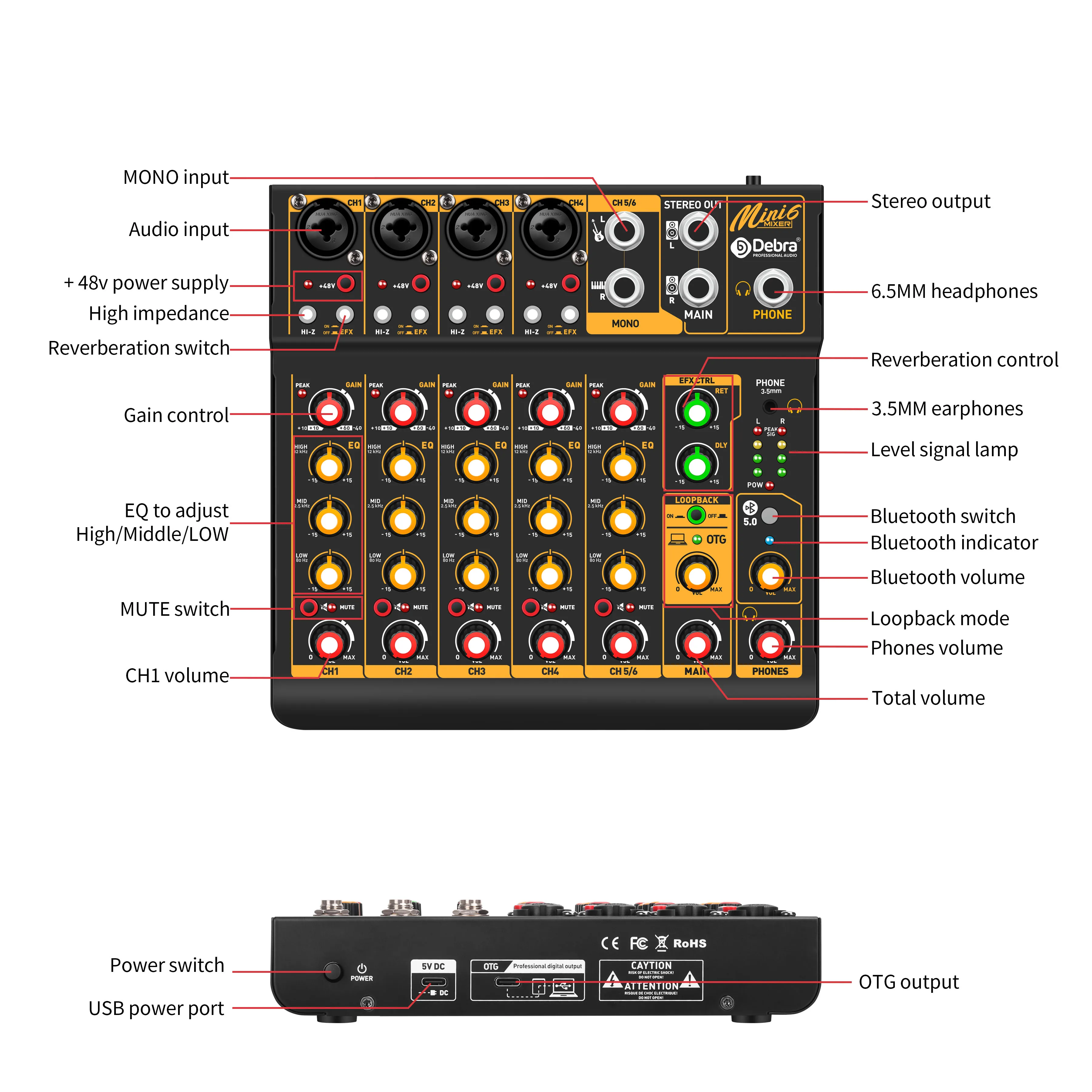

Features:

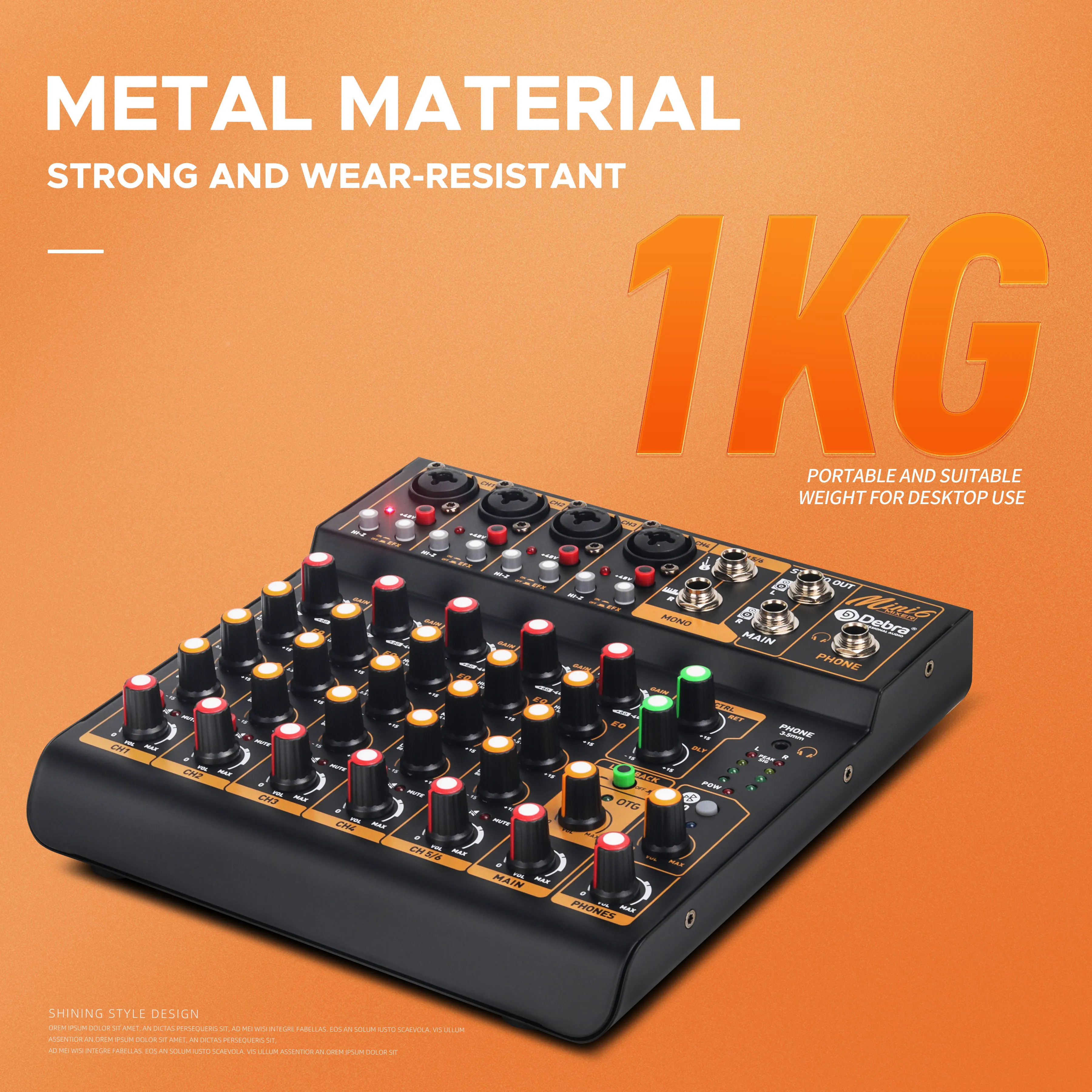

●Super mini size, easy to carry and takes up very little space.

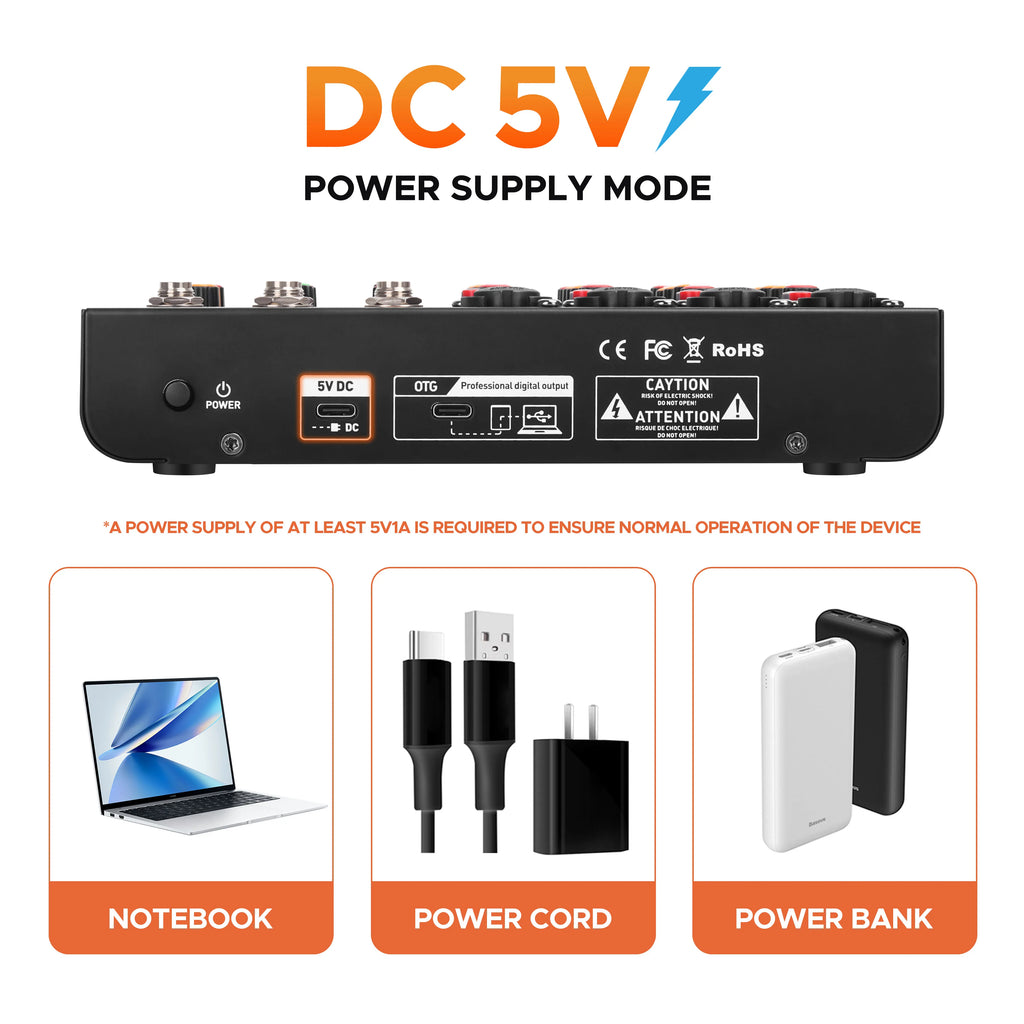

●It adopts 5V power supply, which is convenient for outdoor use and can be powered by mobile power supply.

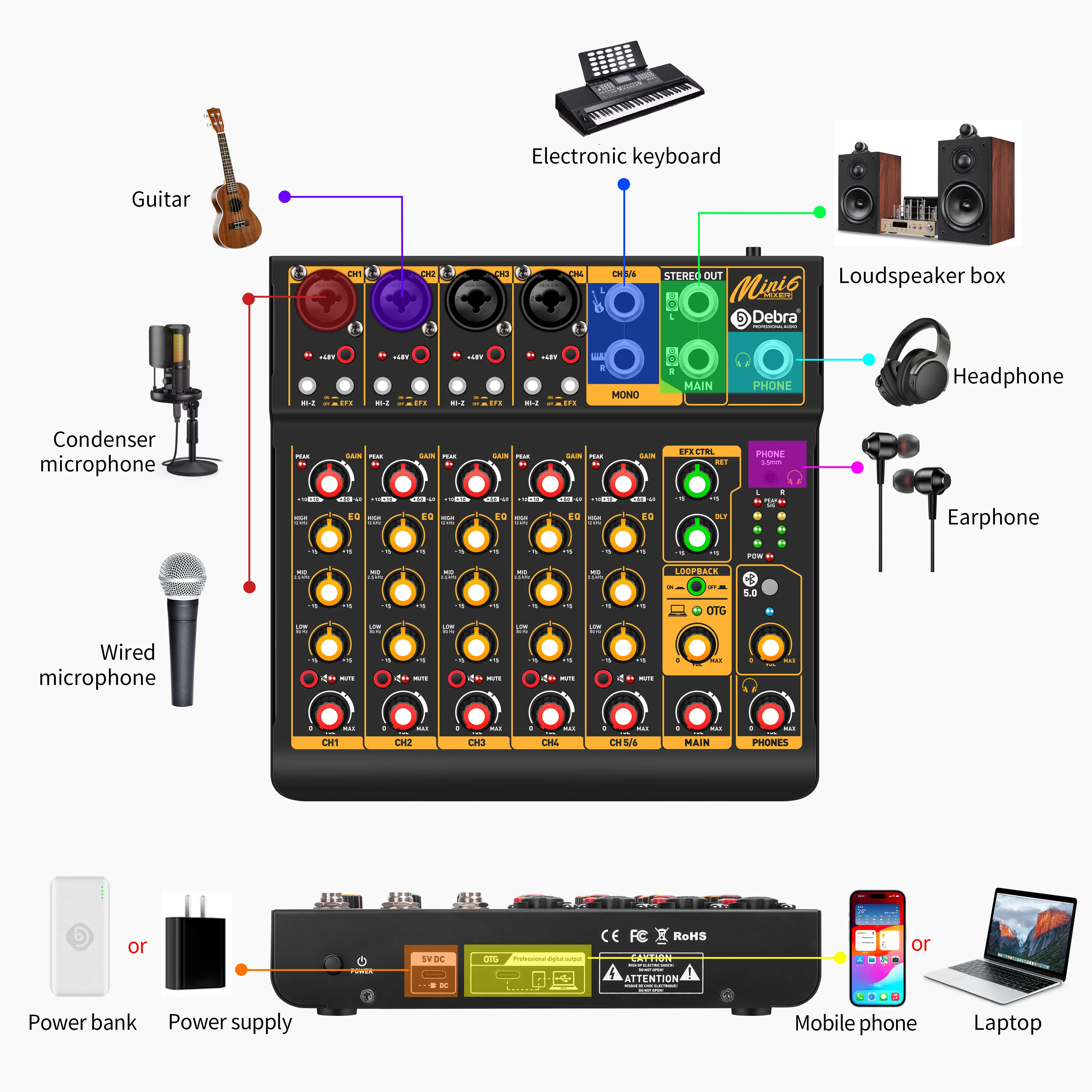

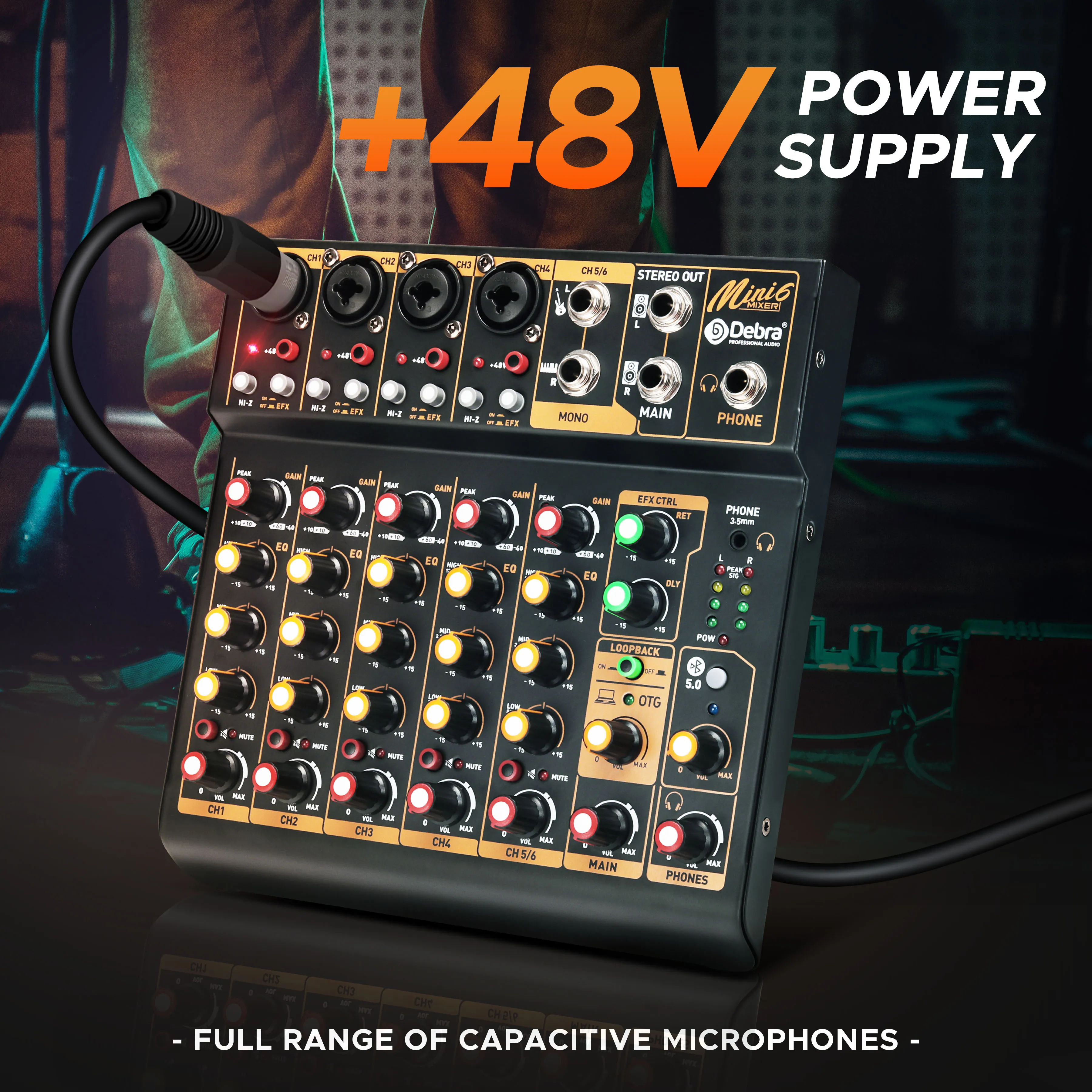

●1, 2-way XLR, with independent 48V switch and high impedance function.

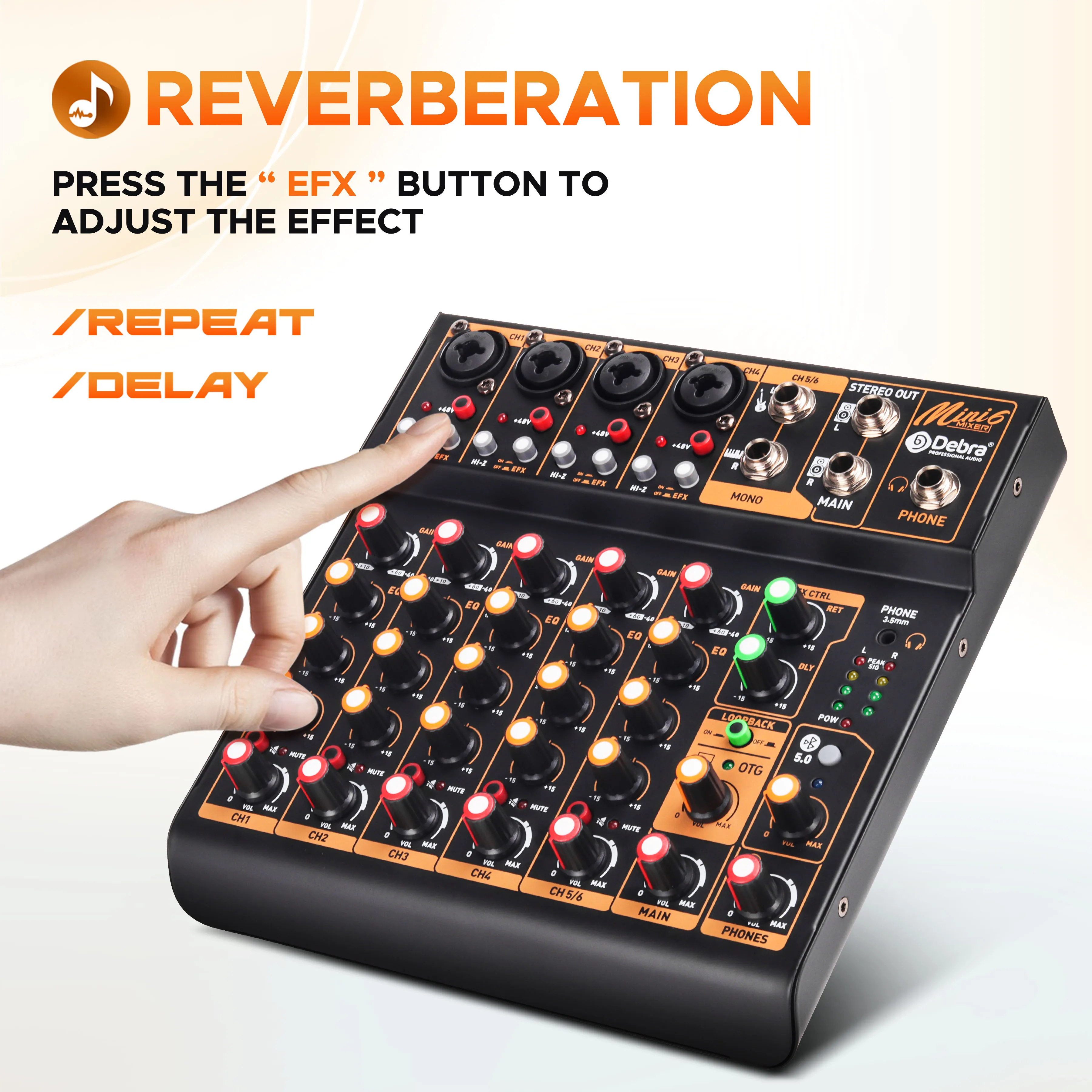

●Channels 1 and 2 have independent effect switches.

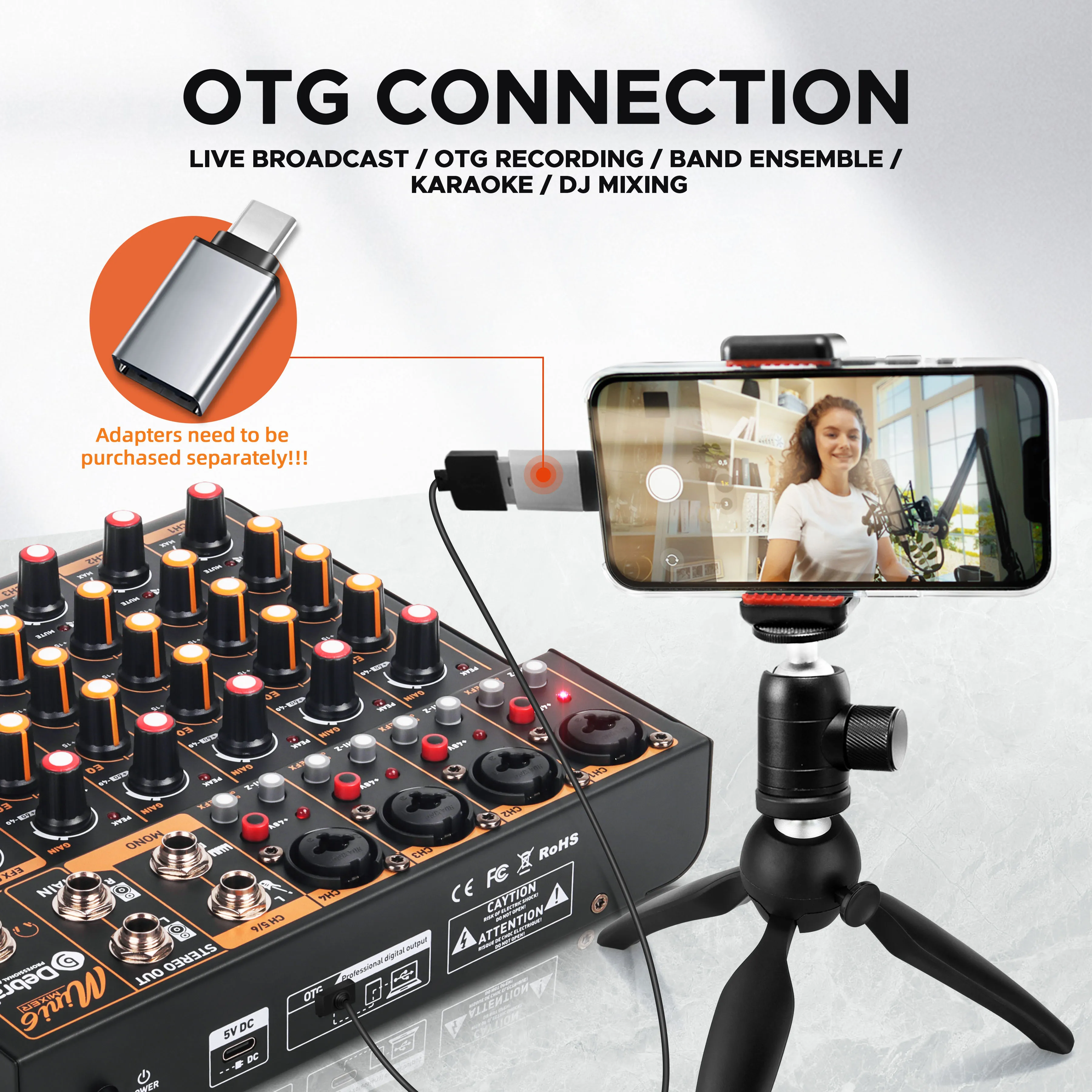

●OTG output facilitates connection to PC/smart devices.

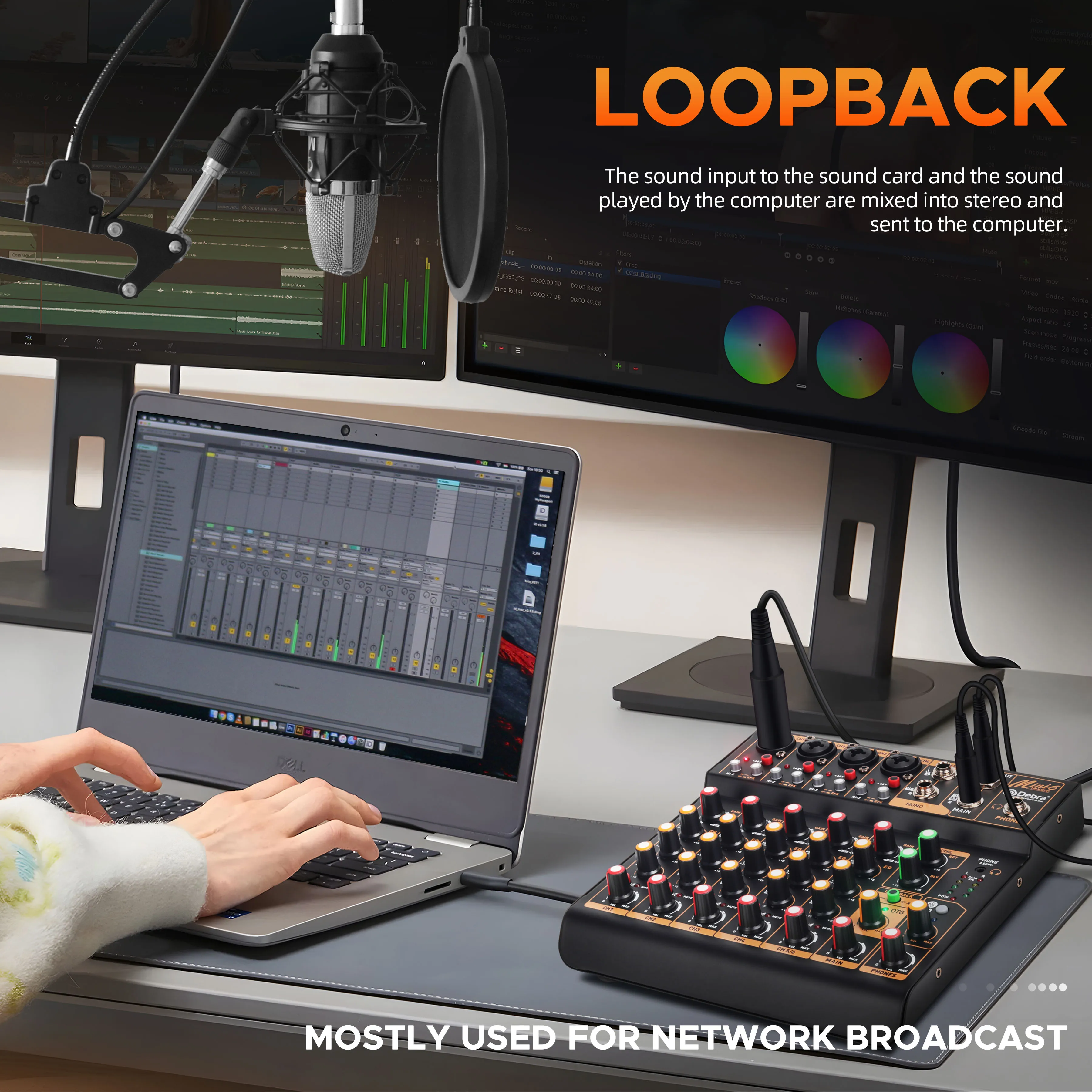

●The recording mode can be switched through the loopback button.

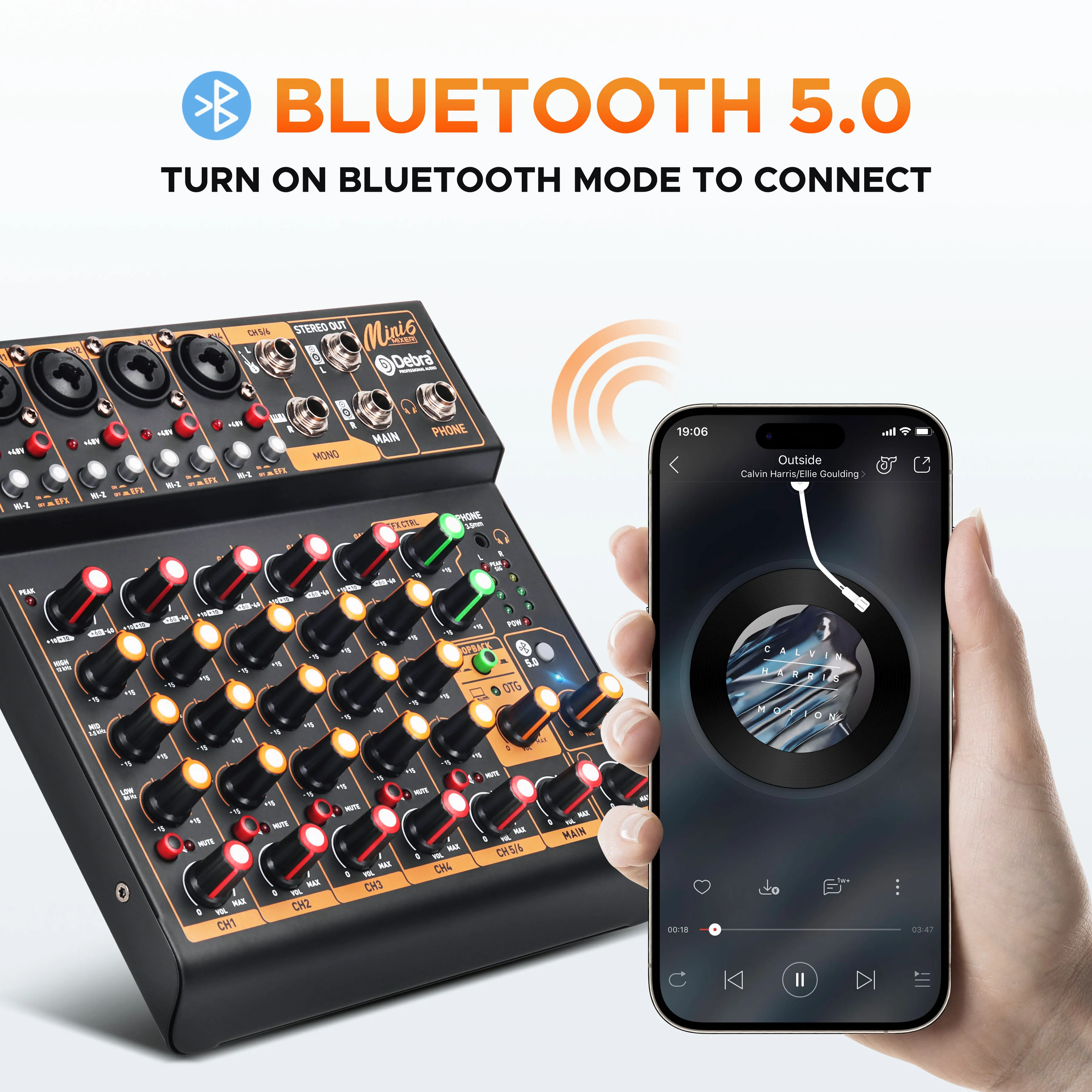

●Bluetooth 5.0 enables wireless high-quality lossless music playback.
●Ultra-low noise floor, high-quality chip processing audio, the sound is clearer.
●High quality microphone amplifier and headphone amplifier.

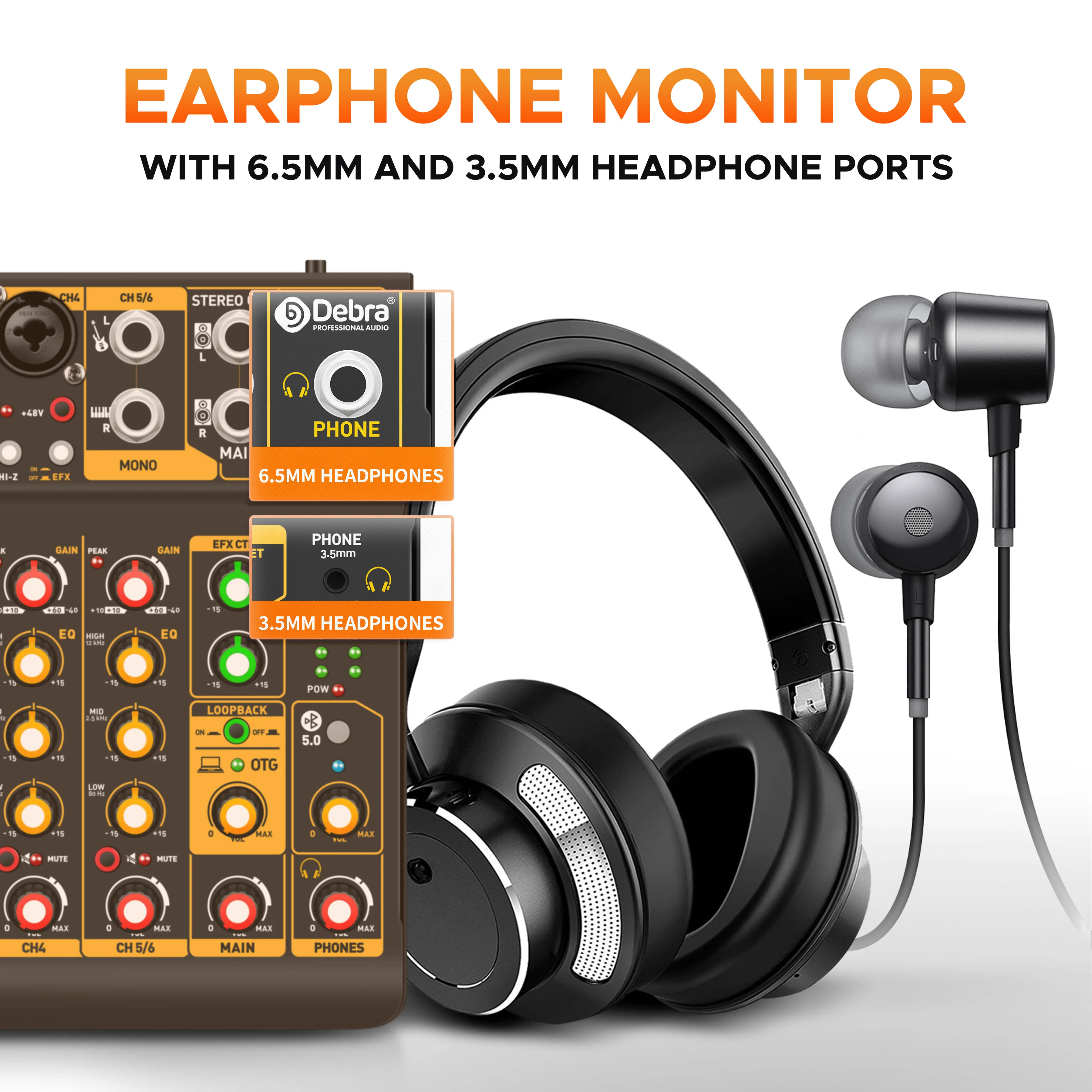

●Equipped with 3.5mm and 6.5mm headphone jacks.

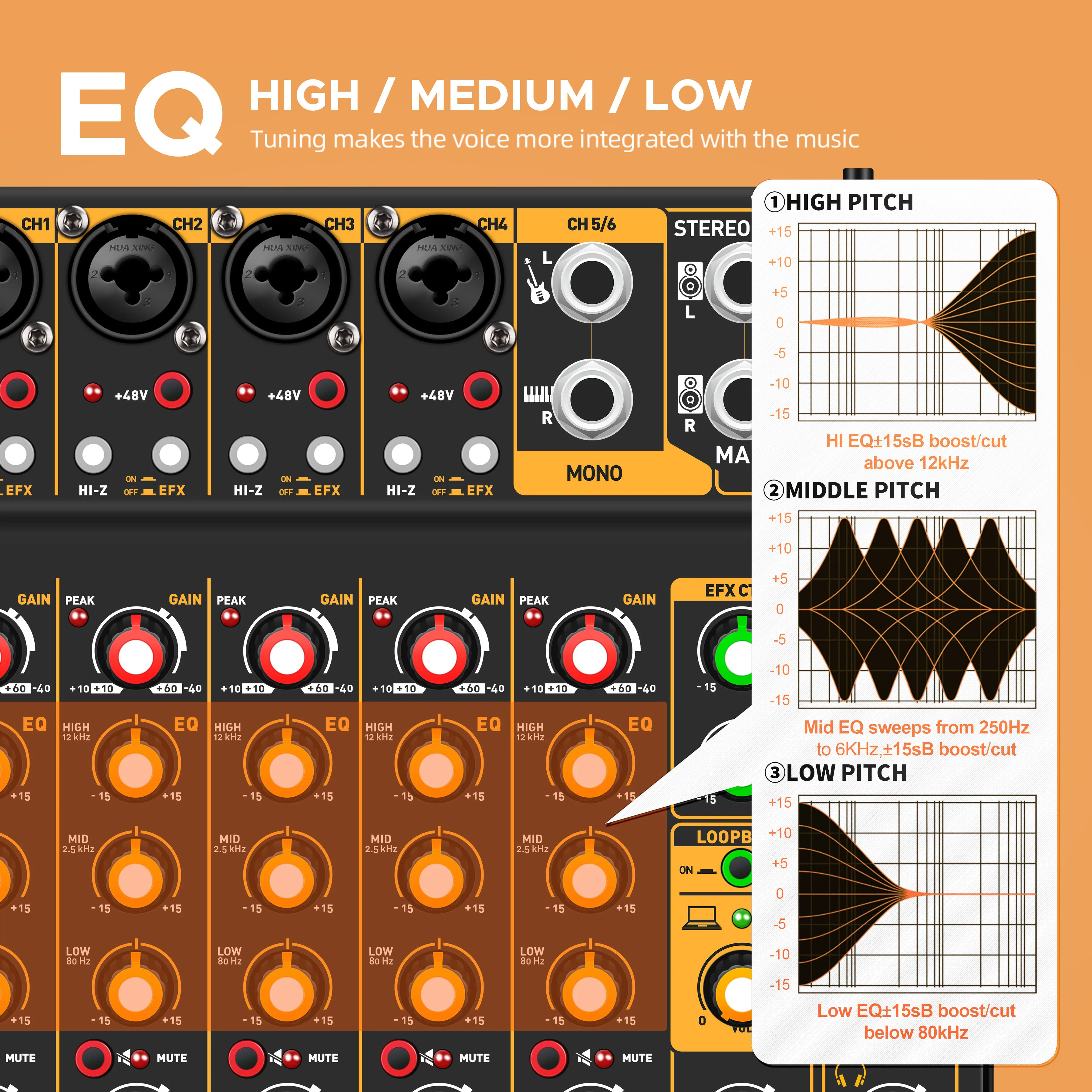

●CH1 three-level equalization is adjustable.
