SPECIFICATIONS

Battery Included: No

Brand Name: L

Certification: CE,FCC,RoHS

Computer Memory Type: DDR3 SDRAM

Demo Board Type: ARM

Graphics Coprocessor: Mali-450 MP3

High-concerned chemical: None

Interface: 4 x USB2.0

Intergrated Feature: IR Receiver

Memory Capacity: 2 GB

Model Number: AML-S905X-CC

Operating System: Linux, Android

Origin: Mainland China

Processor: ARM Cortex-A53

Processor Brand: AMLogic

ROM Capacity: None

SoC: Amlogic S905X

Typical Application Fields: Edge Computing and AI Applications

Voltage: 5 Volts,5 Volts

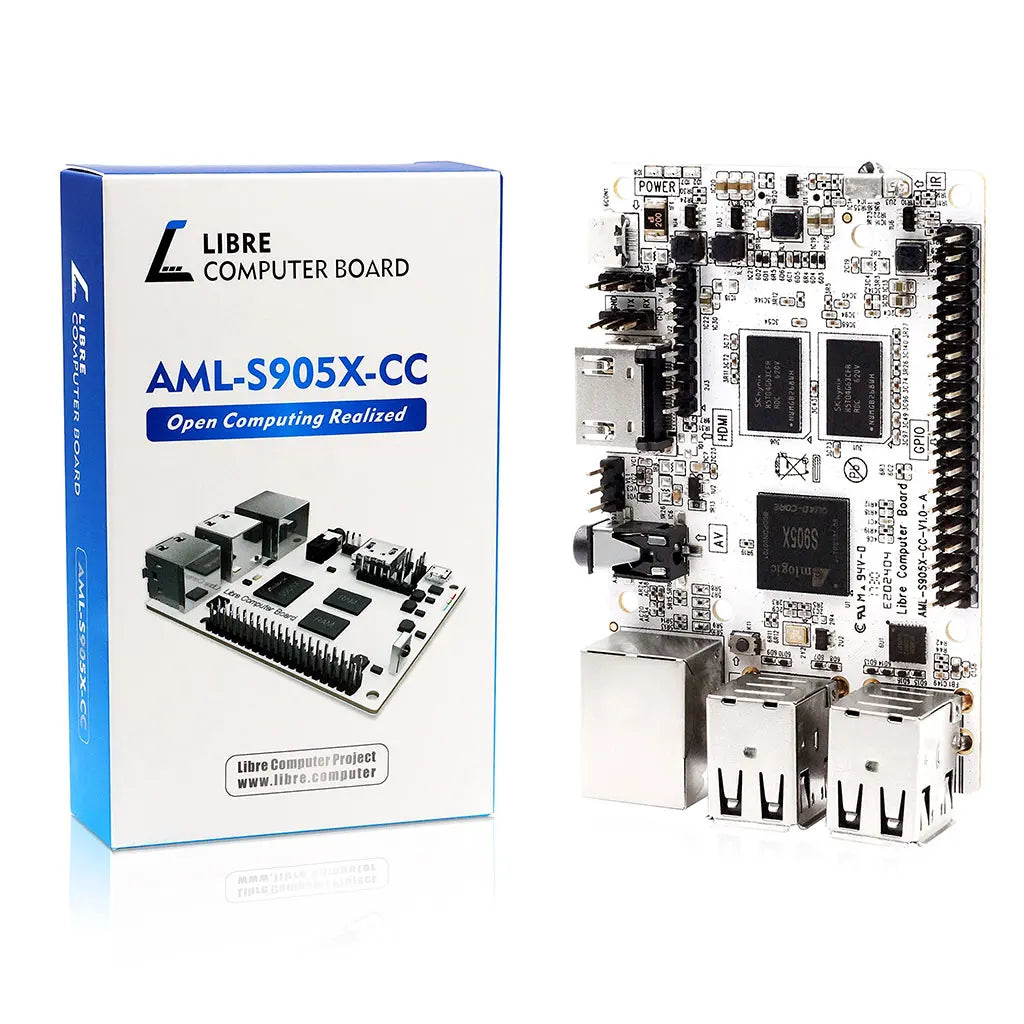

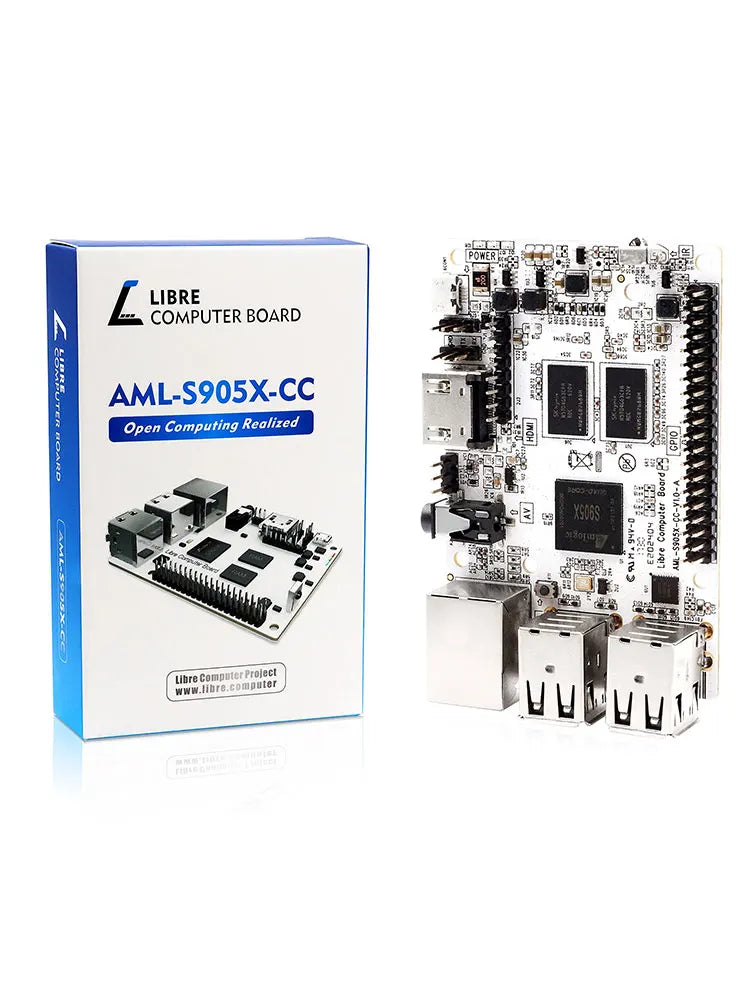

                              Libre Computer Single Board AML-S905X-CC (Le Potato) 2GB 64-bit Mini PC for 4K Media

About this item

• LATEST SOFTWARE SUPPORT: Ubuntu 22.04 LTS and Raspbian 11 support with hardware-accelerated video playback and 3D graphics. Upstream software stack featuring the latest Linux 6.x with open source graphics and video libraries. UEFI support with GRUB sofware behaves like PCs. Direct first software support and community hub for third party help to get started. Video tutorials on YouTube for commonly asked questions.

• COMPATIBILITY AND EXTENSIBILITY: Great RPi alternative with same form factor as Pi 3 Model B for re-use with existing cases and power supplies. Identically designed 40-pin header enables hardware re-use by maintaining same pins for functions like SPI, I2C, PWM, UART, and more. Powerful GPIO wiring tool, libretech-wiring-tool, is available on Github that can quickly toggle GPIOs and dynamically control dtoverlays for faster design, testing, and learning.

• HIGH PERFORMANCE LOW POWER: AML-S905X-CC performs faster than a Pi 3 B+ while using half the power. It is designed with power optimizations to increase sustained performance under load and reduce failures due to input voltage and current. It is one of the first SBCs to support 4K multi-codec hardware decoding and features a highly performant OpenGL ES 2.0 GPU for accelerated 2D/3D.

• FASTER CPU AND DOUBLE THE MEMORY: Quad 64-bit 1.5GHz ARM Cortex-A53 Processors, 4K Ultra HD ARM Mali-450 750MHz GPU, 2GB of High Bandwidth DDR3, 4K 60FPS High Dynamic Range Display Engine for H.265 HEVC, H.264 AVC, VP9 Hardware Decoding and more. The top performing SBC in its price class.

• OPEN SOURCE COMMITMENT: Libre Computer collaborates with software partners to create upstream infrastructure, drivers, and libraries for open-source projects such as Linux and u-boot that power our products. This enables us to support the latest software innovations created by the community and ensures that our products have the necessary security and software performance innovation for long term support.

Key Features:

• Quad-Core 64-bit ARMv8 Cortex-A53 CPU with NEON and Crypto Extensions

• Penta-Core ARM Mali-450 MP3 GPU with OpenGL ES 2.0 @ 750MHz

• 2GB of DDR3-2133 SDRAM on 32-bit Bus for up to 69Gb/s Unified Memory Bandwidth

• Multi-Plane Multi-Format 2.5D Programmable Pipeline Display Engine with HDMI 2.0 Output

• 4K Ultra-HD High Dynamic Range Video Decode Engine with Hardware Accelerated Decoder for VP9, H.265, H.264

• Form Factor and GPIO Compatibility with Raspberry Pi 3 for Maximum Re-usability

Supported Operating Sytem Images:

• Latest Linux 6.x With Weekly Security Updates

• Ubuntu 22.10 / 22.04 LTS / 20.04 LTS

• Debian 11

• Raspbian 11

• CoreELEC (Kodi)

• LibreELEC (Kodi)

• Android 9.0 Pie

• Armbian

• Lakka (RetroArch/Retro Gaming)

• Batocera (RetroArch/Retro Gaming)

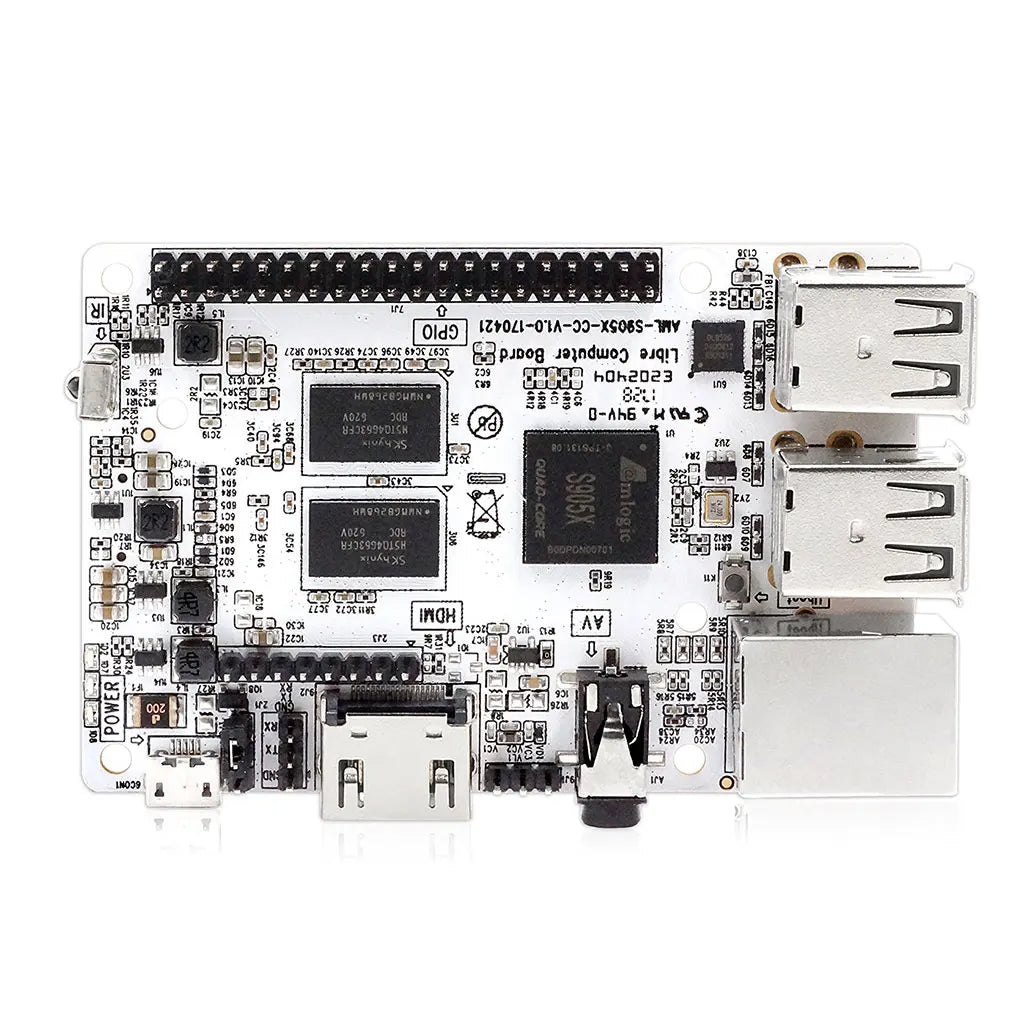

Front Side:

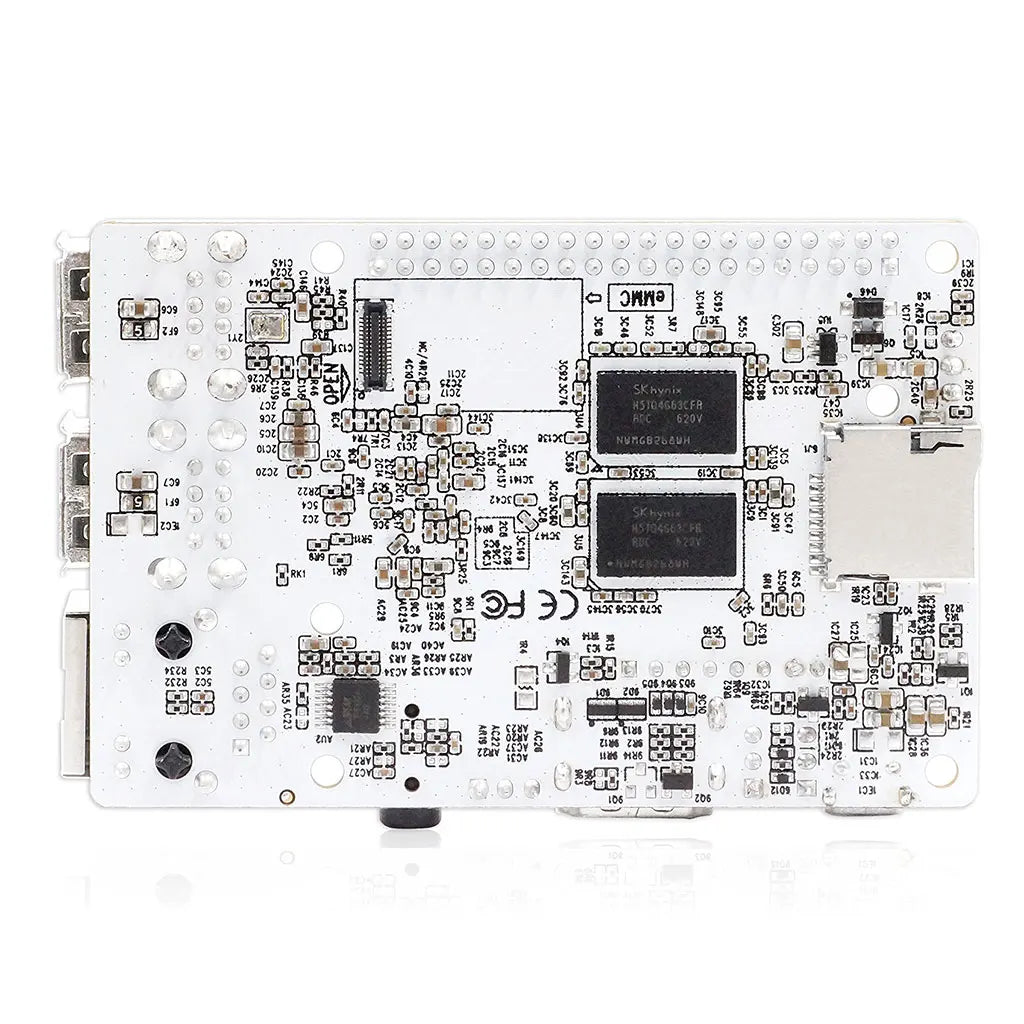

Rear Side:
